Product Details:
|
| Chipset: | Unisoc IVY510 | MIMO: | 5G MIMO DL 4 * 4 UL 2 * 2 |
|---|---|---|---|
| Waranty: | 12 Monthes | Wifi Connection: | 32 Users |
| Wi-Fi: | 802.11a/b/g/n/ac 2.4GHz 2x2MIMO 11n, ~300Mbps 5GHz 2x2MIMO 11ac, ~867Mbps | Wi-Fi 6: | 802.11 Ax |
| WiFi-6: | AX3600 | Speed: | 4.67Gbps |
| NR（Rel.15）: | N1 / N41 / N77 / N78 / N79 | Support: | TR069 |
| OS: | Linux 4.4 | ||
| High Light: | Gigabit 5Ghz Router WiFi,5Ghz Router WiFi 6,AX1800 router lte wifi 5ghz |
||
Gigabit WiFi6 AX1800 WiFi Wireless Router 5G LTE CPE Modem 5G Router support tr069 vpn VoLTE RJ11
| Feature | Description |
| Chip Platform | 5G/LTE Modem: Unisoc IVY510, Dual-core ARM Cortex A55, up to 1.35GHz WIFI: Realtek RTL8198D, Dual-core MIPS interAptiv@900MHz |
| Frequency | 5G-NR: N1/N41/N77/N78/N79 FDD-LTE: B1/B3/B5/B8(or B28A/B28B) TDD-LTE: B34/B38/B39/B40/B41 Can be customized according to the customer’s requirements |
| Size | 215mm * 105 mm |
| LED | 5 LEDs with 3 colors, Wi-Fi, 4G Signal, 5G Signal, WPS, Power |
| SIM Card | 1.8V / 3V Nano SIM Card |
| Wifi Connection | 32 devices |
| Chipset | 5G/LTE Modem : Unisoc IVY510, Dual-core ARM Cortex A55, up to 1.35GHz WIFI : Realtek RTL8198D, Dual-core MIPS interAptiv @ 900MHz |
| Memory | 5G/LTE Modem: RAM 4Gb LPDDR4X + ROM 2Gb Nand RTL8198D: RAM 2Gb DDR3 + ROM 1Gb Nand |
| OS | Linux 4.4 |

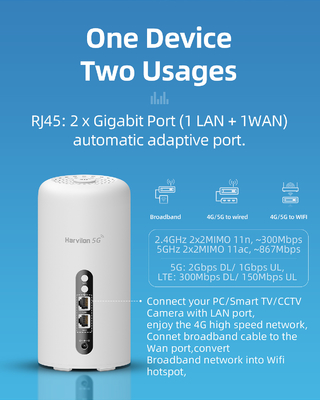

| Interface | DC , Power Key , WPS Key , Reset Hole , Nano SIM Solt RJ45 : 2 x Gigabit Port (1 LAN + 1WAN) |
| Power Supply | DC 12V/2A |
| Carrier Aggregation | DL : 3CA UL : 2CA |
| MIMO | 5G : DL MIMO 4 * 4 , UL MIMO 2 * 2 LTE : MIMO 2 * 2 WIFI : MIMO 2 * 2 ( 5GHz ) , MIMO 2 * 2 ( 2 . 4GHz ) |
| DL modulation | LTE : 64 - QAM 5G Sub6 : 256-QAM |
UL modulation |
LTE: 64-QAM 5G Sub6: 256-QAM |
| Peak data rate | 5G: 2Gbps DL/ 1Gbps UL, LTE: 300Mbps DL/ 150Mbps UL Notes: This is maximum theory speed, depend on the network support |
| Wi-Fi | 802.11a/b/g/n/ac 2.4GHz 2x2MIMO 11n, ~300Mbps 5GHz 2x2MIMO 11ac, ~867Mbps |
Honored Partners
FAQ
1. Could we add French , Spainish , Japanese languages in the MiFi ?
[ Harvilon ] Yes , you can .There are about 20 languages you can choose .You can decide the languages according to your marketing .
2. We do not have designer , could you design our brand GB , ID , UI , labels for us ?
[ Harvilon ] Yes , Harvilon has more thenn 10 years experience in OEM / OEM ,we can help you on these designing until you are satified.
3. Could we as agent of your brand ?
[ Harvilon ] Of course , Harvilon welcome you to be as our agent . Harvilon will prepare stock for you after get your sales plan.
4. How long is the warranty ?
[ Harvilon ] One year . Usual use , no drop the water , we can help to repair for you .If need ,we send components to you AT FREE ,which not including PCBA , Battery and LCD .
5. How about 10K lead time ?
[ Harvilon ] About 25 -30 days .
6. I only want to buy 500pcs at first order , can I buy ?
[ Harvilon ] Yes , we can sale to you 500 pcs , but unit price is not as competitive as 5 K pcs .
